Supplied And Installed @ $650 Inc GST No On Going Cost, Free App , Unlimited Users.
Compatible with almost all alarm brands (one APP for all )

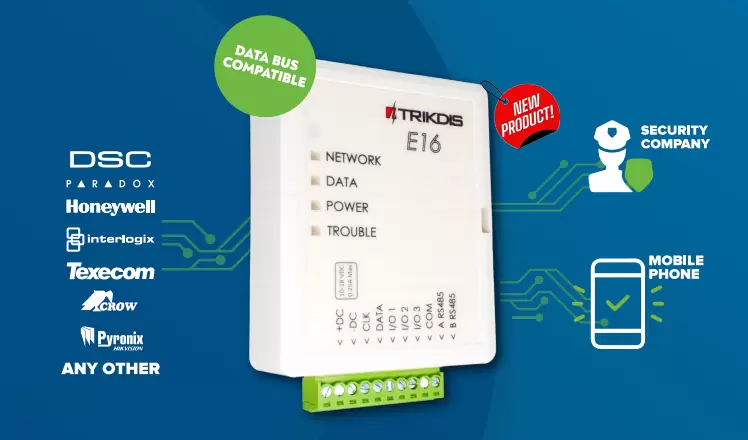

E16 is not just an Ethernet transmitter that sends messages to compatible security systems. It also transmits the command received over the internet to the system to arm/disarm protection mode.

Features:

Sends events to monitoring station receiver:

  • Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
  • Can send event messages to SIA DC-09 receivers.
  • Connection supervision by polling to IP receiver every 30 seconds (or by user-defined period).
  • The backup channel, that will be used if connection with the primary channel is lost.
  • With parallel communication channels events can be sent to two receivers at the same time.
  • When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app users.

Works with Protegus app:

  • “Push” and special sound notifications informing about events.
  • Remote system Arm/Disarm.
  • Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).
  • Remote temperature monitoring (with iO or iO-WL expanders).
  • Different user rights for administrator and installer.

Notifies users:

  • Users can be notified about events with Protegus app.

Controllable outputs and inputs:

  • 3 double I/O terminals that can be set either as input (IN) or controllable output (OUT) terminals.
  • Outputs controlled by the Protegus app.
  • Add additional inputs and controllable outputs with wired and wireless iO expanders.

Quick setup:

  • Settings can be saved to file and quickly written to other communicators.
  • Two access levels for configuring the device for CMS administrator and for the installer.
  • Remote configuration and firmware updates.

Supplied and Installed @ $650 inc GST No on going cost, Free App

Features:

SENDS EVENTS TO MONITORING STATION RECEIVER:

  • Sends events to TRIKDIS software or hardware receivers that work with any monitoring software.
  • Can send event messages to SIA DC-09 receivers.
  • Connection supervision by polling to IP receiver every 10 seconds (or by user defined period).
  • Backup channel, that will be used if connection with the primary channel is lost.
  • When Protegus service is enabled, events are first delivered to CMS, and only then are sent to app users.

WORKS WITH PROTEGUS APP:

  • “Push” and special sound notifications informing about events.
  • Remote system Arm/Disarm.
  • Remote control of connected devices (lights, gates, ventilation systems, heating, sprinklers, etc.).
  • Different user rights for administrator, installer and user.

CONTROLLABLE OUTPUTS AND INPUTS:

  • 2 input, selectable type: NC, NO, EOL=2.2 kΩ
  • 1 output controlled via:
  • Mobile/Web application

QUICK SETUP:

  • Settings can be saved to file and quickly written to other communicators.
  • Two access levels for configuring the device for CMS administrator and for installer.
  • Remote configuration and firmware updates.
